fused silica for investment casting's ceramic slurry,coatings,shell

FUSED SILICA from Chemsize is made from high purity silica, under unique fusion technique,
thus ensuring its high quality. It is over 99% amorphous with extremely low coefficient of expansion,
and high resistance to thermal shocks. It is inert, has excellent chemical stability and extremely low electrical conductivity.
Because of these characteristics, FUSED SILICA finds many uses, including:
Investment Casting, Refractory and Ceramic applications.

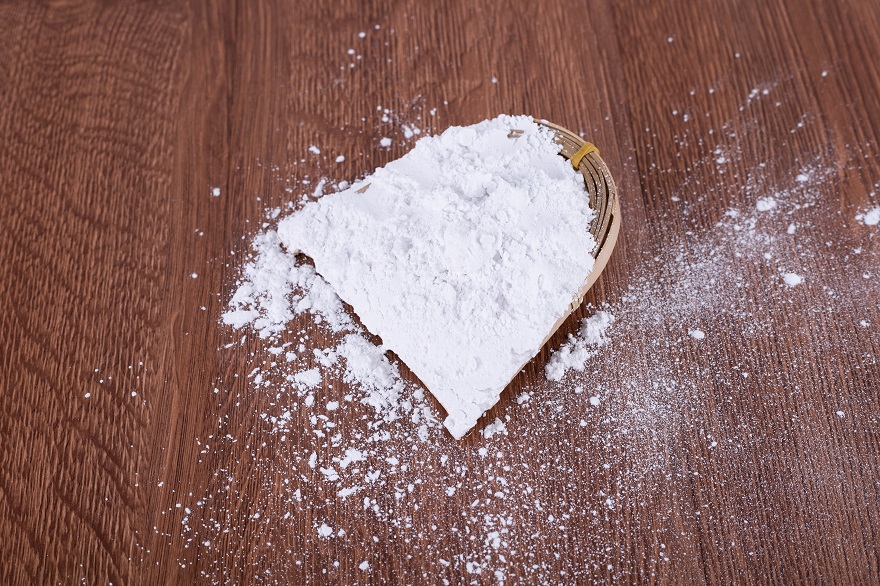

Fused Silica grains fused silica powder -Investment Casting Grade
PHYSICAL CHARACTERISTICS and CHEMICAL ANALYSIS
1. Physical Properties
1.1 Composition SiO2
1.2 Structure Amorphous
1.3 Colour Transparent or white
1.4 Melting Temperature approx.1750℃
1.5 Specific Gravity 2.21g/cm3
1.6 Hardness 7 Mohs
1.7 Thermal Expansion 0.5*10-6
2.   Chemical Properties
    Investment Casting Grade
2.1 SiO2 >99.90%
2.2 Al2O3 <200ppm
The finer the power,the higher the Al2O3,as powder is produced by ball mill with Alumina ball.
2.3 Fe2O3 <50ppm
2.4 TiO2 <20ppm
2.5 MgO <40ppm
2.6 CaO <40ppm
2.7 AlkaliesNa2O+K2O <100ppm
 3.   Particle Size   Distribution

Particle size distribution:PSD

  10/20      20/50     30/50     50/100   -100      -200      -325mesh
Mesh Microns
8 2360 <2
12 1700 6-25
16 1180 33-50
20 850 25-45 <1 <1
30 600 13 25-40 15-30
40 425   32-45 38-50
50 300   15-30 20-35 <13
70 212       30-60
80 180   0-11 <10     <1
100 150       28-51 <15 <1
140 106       4-16 17-40 <10
200 75       <2 19-34 <10 <3
325 45         14-30 15-30 4-11
Pan   <3 <2 <2 <1 4-20 70-80 86-97
 Custom sizes are also available.
*Pan designates the percentage of fused silica passing the last reported screen for each size.
